ЭР32
JC

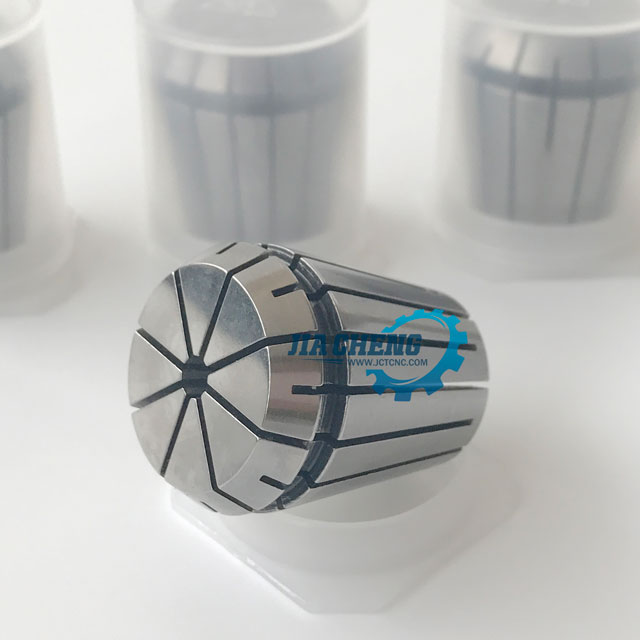

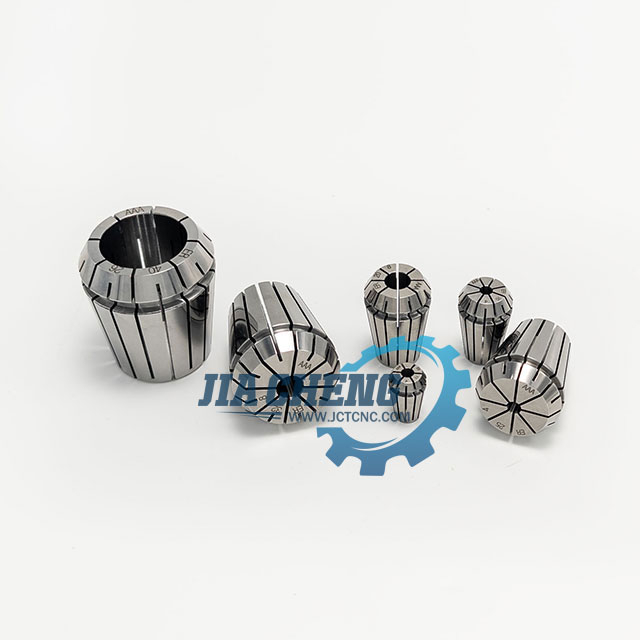

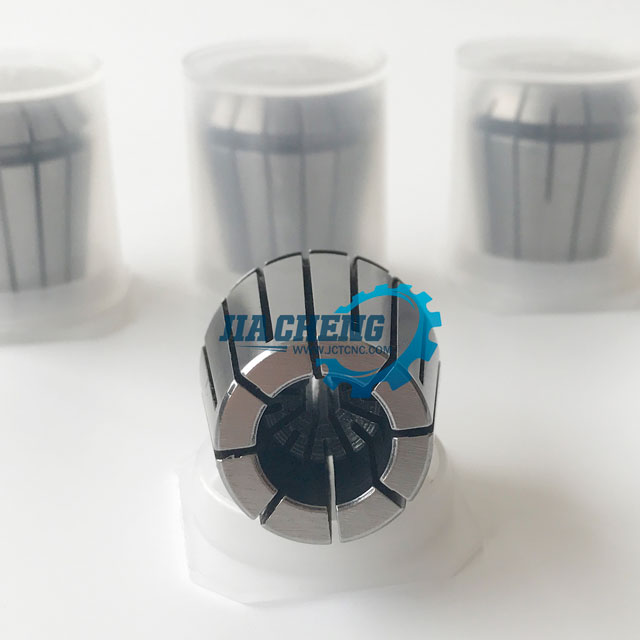

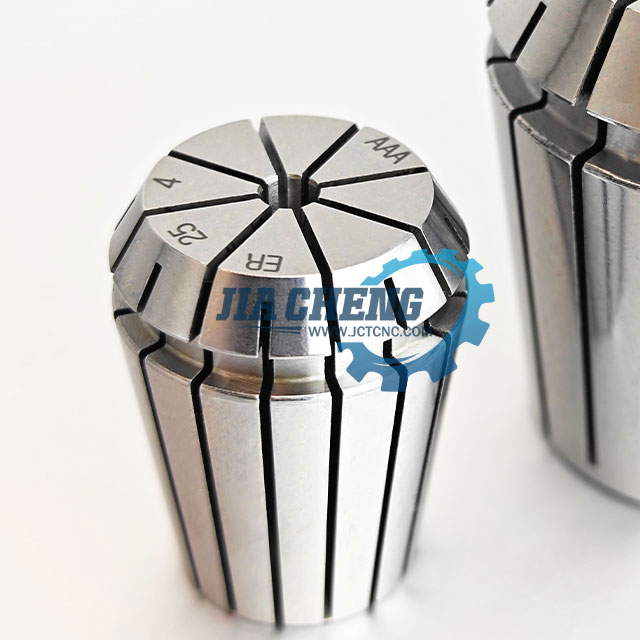

Фрезерная цанга с ЧПУ с пружинным уплотнением ER32, прецизионная цанга для подачи охлаждающей жидкости
| Модель | г H7 | D | Д1 | Д2 | L | Л1 | Л2 | Л3 | Складная емкость |
| ER8 | ≧1,0-5,0 | 8 | 8.45 | 6.5 | 13.5 | 2.98 | 1.5 | 1.2 | 0.5 |
| ЭР11 | ≧1,0-7,0 | 11 | 11.5 | 9.5 | 18.0 | 3.8 | 2.5 | 2.0 | 0.5 |
| ЭР16 | ≧1,0-2,5 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 0.5 |
| >2,5-10,0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 1.0 | |
| ЭР20 | ≧1,0-2,5 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 0.5 |
| >2,5-10,0 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 1.0 | |
| ЭР25 | ≧1,0-2,5 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 0.5 |
| ≧2,50-16,0 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 1.0 | |
| ЭР32 | ≧2,0-2,5 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 0.5 |
| >2,5-20,0 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 1.0 | |
| ЭР40 | ≧3,0-26,0 | 40 | 41 | 36.2 | 46.0 | 7.66 | 7.0 | 4.1 | 1.0 |
| ЭР50 | ≧6,0-10,0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 1.0 |
| >10,0-34,0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 2.0 |
Проверка точности
| D | L | Допуск на выход | ||||
| A | B | C | I | II | ||
| 1,0-1,6 | 6 | 0.005 | 0.008 | 0.010 | 0.010 | 0.015 |
| >1,6-3,0 | 10 | |||||
| >3,0-6,0 | 16 | |||||
| >6,0-10,0 | 25 | |||||
| >10,0-18,0 | 40 | 0.015 | 0.020 | |||
| >18,0-26,0 | 50 | |||||
| >26,0-30,0 | 60 | |||||
| >30,0-34,0 | 80 | 0.020 | 0.030 | |||
